PID Temperature Control Search in the PTSHEAT Store
***VISIT OUR STORE TO VIEW STOCK***
Contact our sales engineers for Technical Support and Product Selection!! https://phoenixthermalsupply.com/contact-us/
Phoenix Thermal Supply. Think PTSHEAT for your PID Controller. We are the largest stocking distributor in the Southeast!! We supply several lines of single and multi-zone temperature controls. Autonics TC, Autonics TCN, Autonics TX, Autonics TK, Chromalox Single-Loop, Chromalox Multi-Loop, Chromalox Limit Controllers, Future Design Controls C Series, Future Design Controls 100 Series, Future Design Controls 300 Series, Future Design Controls L, B, & P Series, Watlow Series 93, Watlow EZ-Zone Express, Watlow EZ-Zone PM Control, Watlow PM PLUS Control, Watlow LEGACY Controller, Tempco 4100, Tempco 8100, Eurotherm Barber Colman 7EM, and Single or Multi-Zone Control Panels.
PID Controller (proportional with integral and derivative) controllers combine proportional control with two additional adjustments to automatically compensate for changes in the system. The integral and derivative adjustments are expressed in time-based units and referred to by their reciprocals, RESET and RATE.
Single-loop, auto-tuning temperature controllers automatically set PID controller parameters for optimum system performance. Manual settings also permit on-off, P, PI or PID controller modes. Auto-tuning temperature controllers supplied by Phoenix Thermal Supply are designed and manufactured to withstand harsh industrial environments.

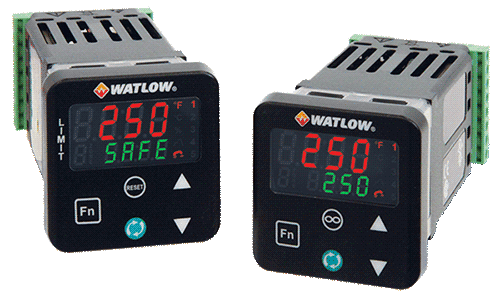

Watlow LEGACY SERIES Panel Mount Controller
The Watlow® LEGACY SERIES panel mount controller is an industry-leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideally suited for basic applications and usage levels. The LEGACY includes one universal input and an option for up to two outputs and is available in 1/16 DIN and 1/32 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller. Replaces the EZ-Zone PM controller, Series 93, Series 965, Series 96, and ALL brands of panel mount PID controllers.
Performance Features
| DESCRIPTION | INFORMATION |
|---|---|
| TRU-TUNE®+ Adaptive Control | Yes |
| Agency Approvals | UL® listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200, Class 1, Div. 2 rating on selected models |
| Alarms | Yes |
| Communication Protocols |
Bluetooth
Modbus® RTU
EtherNet/IP™
Modbus® TCP
PROFIBUS DP
DeviceNet™
SAE J1939 CAN Bus
Standard Bus
|
| Control/Limit Loops | 1 |
| Max Output | 15A NO-ARC |
| Mounting | 1/16 DIN Panel Mount |
| Profiling | Yes |
Brochure:
Watlow LEGACY Quick Start Guide: PM6 LEGACY Express PID Controller QSG 07-21-20
Watlow PM PLUS SERIES PID & Integrated Limit Panel Mount Controller
Watlow’s PM PLUS™, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience. The PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers but offers many user upgrades including an intuitive menu flow allowing the controller to be easily configured. It also continues to offer the industry leading Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes. The PM PLUS improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE PM, the PM PLUS can be ordered as a PID controller, or an integrated controller with multiple functions combined into one. Replaces the EZ-Zone PM controller, Series 93, Series 965, Series 96, and ALL brands of panel mount PID controllers.
Performance Features
| DESCRIPTION | INFORMATION |
|---|---|
| TRU-TUNE®+ Adaptive Control | Yes |
| Agency Approvals | UL® listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200, Class 1, Div. 2 rating on selected models |
| Alarms | Yes |
| Communication Protocols |
Bluetooth
Modbus® RTU
EtherNet/IP™
Modbus® TCP
PROFIBUS DP
DeviceNet™
SAE J1939 CAN Bus
Standard Bus
|
| Control/Limit Loops | 1 |
| Max Output | 15A NO-ARC |
| Mounting | 1/16 DIN Panel Mount |
| Profiling | Yes |
Brochure:
Watlow PM PLUS User Manual: PM PLUS PID Integrated 6-8-9 USER GUIDE -12-01-21
Watlow PM Brochure: PM PLUS BROCHURE SELECTION GUIDE

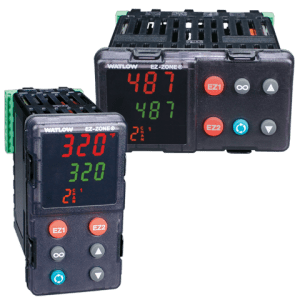

Watlow EZ Zone PM Express Controller
This PID controller delivers advanced control functionality while using a user-friendly interface that supports two menus and a streamlined list of parameters. The
Express menu eliminates complexity and reduces both training costs and user errors.
The PM Express includes one universal input and the option for up to two outputs.
Performance Features
Simplified menu
- PID auto-tune
- Standard bus communications
- Factory Mutual (FM) approved over & under limit with auxiliary outputs
- Agency approved
- Removal front panel
- P3T armor sealing system
- Touch-safe package
- Consistent Termination Labeling (CTL) connection system
- High amperage power control output
- Class 1, Div. 2
Watlow PM Express Panel Mount Controller
Brochure:
Watlow EZ Zone PM Controller
The EZ Zone PM panel mount PID controller offers control options to reduce system complexity and cost. It can be ordered as a PID controller, an over/under controller or a combination of these functions combined in an integrated controller.
Since the controller is highly scalable, you only pay for the functions you need.
Performance Features
- Integrated PID and limit controller
- High amperage power control output
- Current monitoring
- Serial communication capabilities
- Dual-channel controller
- Enhanced control options
- Advanced PID controller algorithm
- Configuration communications with software
- Ten-point linearization curve
- Built-in sensor compensation curves
- Remote set point operation
- Profile capability
- Retransmit Output
- Factory Mutual (FM) approved over/under limit with auxiliary outputs
- Memory for saving and restoring parameter settings
- Agency approved
- Touch-safe package
- Consistent termination labeling connection system
- EZ-KEY
- Programmable menu system
Watlow EZ Zone PM Control
Brochure:

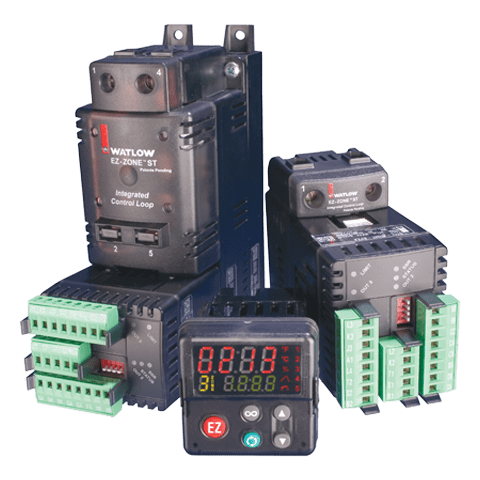

Watlow ST Controller
The EZ-ZONE® ST integrated solid state controller offers complete thermal system control in a single package solution.
The controller features a PID controller connected to a high-amperage solid state relay with the option of adding a properly sized heat sink. It also includes an over- and – under – temperature limit, a shut-down power contactor, digital communications and a remote user interface.
Performance Features
- Back panel or DIN-rail mount
- Compact package
- Touch-safe package
- ±0.1 percent temperature accuracy
- Agency approved
- EZ-ZONE P3T armor sealing system Remote User Interface (RUI)
- Off-the-shelf designed system solution
- Profile capability
- Communications with PLC, PC or OIT
- Solid state relay output
- PID temperature control
- Optional temperature limit
- Optional definite purpose mechanical contactor
- Optional current monitoring feature
- Optional Remote User Interface EZKB (RUI)
- Optional SSR heat sink
- System diagnostics
- PC Software—EZ-ZONE Configurator
EZ Zone ST Controller
Brochure:
Watlow F4T Controller
The F4T® integrated process controller combines the flexibility of a modular I/O with best-in-class ease of use and a sleek touchscreen UI, additionally provides custom tailored configurations to meet the scaling needs of wide range applications and equipment.
Performance Features
- Now featuring e-mail and text alerts. Notify users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error. The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.
| DESCRIPTION | INFORMATION |
|---|---|
| TRU-TUNE®+ Adaptive Control | Yes |
| Agency Approvals | UL/EN 61010 Listed, UL508, CSA, FM (limit), RoHS by design, China RoHS Level 2, W.E.E.E., CE |
| Alarms | Up to 14 |
| Ambient Operating Range | -18 to 50C°C (0 to 122F°F) |
| Communication Protocols | Standard Bus Modbus® TCP Modbus® RTU SCPI USB 2 |
| Control/Limit Loops | 4/4 |
| Description | 1-4 PID loops with profiles & data logging options |
| Max Monitor Channels | 24 |
| Max Output | 10A SSR |
| Mounting | Front panel or flush mount |
| Operating Requirements | N/A |
| Phase Configurations | 1 |
| Profiling | Yes |
| Supported Controllers | F4T, Flex Modules (FM), Composer PC software |
| Remote Limit Reset | 1 |
| Display Height | 4.3″ PCAP color graphical touch |
Brochure:
Watlow F4T & D4T Set-up Guide: F4T-D4T Quick Start Guide 1440-3329 Rev A
Watlow F4T User Guide: F4T Setup Operation Manual 16802414 Rev D
Autonics TX Series Controller
The TX Series PID controller features easy-to-read LCD display with large, 15.3 mm white PV characters. The 11-segment displays used for PV and SV are useful for displaying alphanumeric characters. The temperature controllers also feature 50 ms high-speed sampling cycle and ±0.3% display accuracy. The TX Series also features a compact, space saving design with 45 mm depth. With a
30% reduction in rear-length size, the controllers offer installation flexibility in limited spaces. The temperature controllers also offer various output options including current output, transmission output and RS485 communication output, for application in various environment setting.
Performance Features:
- 50 ms high-speed sampling and ±0.3% display accuracy
* Large LCD display with easy-to-read white PV characters
* Switch between current output and SSR drive output
* SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control
* Communication output model available : RS485 (Modbus RTU)
* Parameter setting through PC (RS485 communication)
: Comprehensive device management software (DAQMaster) provided
* Compact, space-saving design with 45 mm depth
: 30% rear-length size reduction compared to similar-sized Autonics models (48 x 48 mm models)
Brochure:
Autonics TC Controller
TC Series – one of the most cost effective temperature PID controller solutions with essential functions and improved performance – realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling. Especially, that both SSRP output and relay output are supported to realize effective and economical controlling; in addition, improved visibility and compact size is another feature of the TC Series.
Performance Features:
- New low voltage models : 24VAC 50/60Hz, 24-48VDC Advanced PID control algorithm and 100ms sampling speed Built-in option to choose between relay or SSR outputs Compact design and large display panels for better viewing Dual digital display: TCN / Single digital display: TC
Brochure:

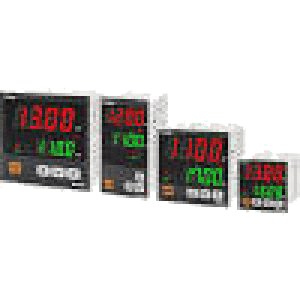

Autonics TCN Controller
TCN Series is economical temperature controllers having dual preset indicator display to increase user convenience. The series realizes ideal temperature controlling with newly developed PID control algorithm and 100ms high speed sampling; in addition, the series allows users to take advantage of economical controlling with SSRP and relayoutputs. The TCN Series is also available in low voltage models for wider user options.
Performance Features:
- New low voltage models : 24VAC 50/60Hz, 24-48VDC Advanced PID control algorithm and 100ms sampling speed Built-in option to choose between relay or SSR outputs Compact design and large display panels for better viewing Dual digital display: TCN / Single digital display: TC
Brochure:

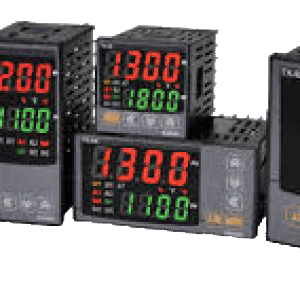

Autonics TK Controller
The TK series high accuracy type standard PID controller feature high-speed sampling cycle rate of 50 ms with ±0.3% display-accuracy. The controllers offer high precision temperature
control with features such as simultaneous heating and cooling control and automatic/manual control options. The all-purpose temperature controllers are available in various sizes and input/output options, for stable and precise temperature control in any required application.
Performance Features:
- New line-up: AC/DC low voltage type (except TK4N models)
* 50 ms high-speed sampling rate and ±0.3% display accuracy
* Simultaneous heating and cooling control function
* Automatic/manual control option
* Switch between current output and SSR drive output
* SSR drive output (SSRP function) control options: ON/OFF control, cycle control, phase control
* Communication output models available : RS485 (Modbus RTU)
* Parameter configuration via PC (RS485 communication)
– DAQMaster software included (comprehensive device management software)
– Communication converter sold separately: SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
* User-friendly parameter features (via DAQMaster)
* SV preset function (up to 4 set values) using digital input terminals
* Heater disconnect alarm function (CT input)
– Current transformer (CT) sold separately: CSTC-E80LN, CSTC-E200LN
* Various input types and temperature ranges
* Various DIN sizes: (48 x 24, 48 x 48, 72 x 72, 96 x 48, 48 x 96, 96 x 96 mm)
Brochure:
Future Design Controls = FDC Process & Temperature Controls

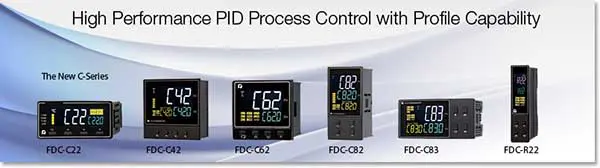

The New C-Series
High Performance Process & Temperature Controllers
Future Design Controls Multi-Color LCD display C-Series set a new standard for DIN temperature controllers packed with performance to meet low cost OEM needs while providing reliable High Performance temperature and process control.
The multi-color LCD display, configurable space for output annunciation, PID % output, count down timer or Profile information provide operators with an ease of use not found in this class of instruments.
Applications:
- Oven – Furnaces – Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Multi-Color Display
- Low Cost High Performance PID Control
- 3-year Warranty
- Universal Input T/C-RTD, VDC, mA, mV
- Simple to Use & Configure
- SEL configurable prompt sequence
- Alarms configurable with Time Delay “active”
- PC Configurable
- PID Fuzzy Assisted Auto Tuning
- Setpoint Logic: Static or Ramp Rate
- Profile Ramp Soak for C82/82 & C42
- Up to 4 Control Outputs & Options
- Re-transmission of SP/ PV
- Remote Setpoint
- Serial Modbus RS232/485
- Up to 6 Event and 2 CT Inputs
FDC 100 and FDC C Series High Performance Single Loop Controls

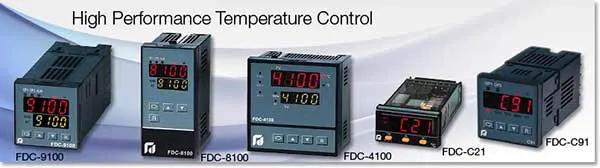

High Performance Temperature Control
Applications:
- Oven – Furnaces – Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Low Cost High Performance PID Control
- PID Fuzzy Assisted Auto Tuning
- Universal Temperature Input / 18 Bit A-D
- Simple to Use & Configure
- SEL configurable prompt sequence
Addt’l Features:
- PC Configurable
- Setpoint Logic: Static or Ramp Rate
- Up to 3 control outputs & optionally:
Retransmission of SP/PV or
Serial Modbus RS232/485 - Serial Communications (option)
FDC 300 Series High Performance Single Loop Controls

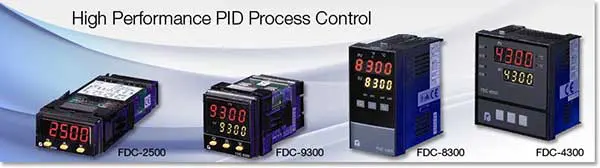

High Performance PID Process Control
Applications:
- Oven – Furnaces – Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Universal Process Input/18 Bit A-D
- 2nd Analog Input (linear mA/VDC)
- 1 Configurable Event Input
- Simple to Use & Configure
- SEL configurable prompt sequence
- PC Configurable
- Nema 4X (9300 UL Approved Nema 4X)
Addt’l Features:
- PID Fuzzy Assisted Auto Tuning
- 2-sets of PID configurations
- Setpoint Logic: Static or Ramp Rate
- Remote Setpoint Standard
- Up to 4 control outputs & optionally:
Retransmission of SP/PV/PID % out - Serial Communications (option)
FDC L Series High Limit Controls
FM Approved High Limit Controls
FM Approved High Limit Controls – L91 1/16 DIN and L41 1/4 DIN. Also Series 7L Surface or DIN Rail Mount.
FDC 90 Series
High Performance 1/16 DIN Temperature Control
FDC-9090 1/16 DIN Single Loop Controls
Future Design’s 9090 Series Temperature Control 1/16 DIN set a new standard for DIN temperature controls when introduced in the early 1990’s. The 9090 Series provides reliable low cost high performance temperature control.
Unique Parameter Selection provides user flexibility & operator ease of use: Alarm SP, Setpoint Ramp Rate & PV Offset can be configured to be displayed in a variety of sequences when the scroll key is depressed.
Applications:
- Oven – Furnaces – Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Low Cost 1/16 DIN PID Control
- 3-year Warranty
- Universal Temperature Inputs
- Simple to Use & Configure
- Setpoint Logic: Static or Ramp Rate
- PID Auto Tuning

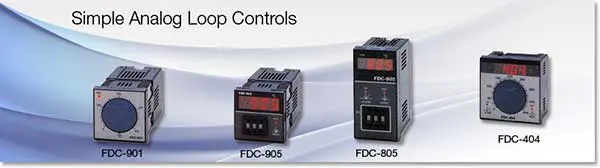

FDC B Series Board Level Controls
PID Temperature & Ramp/Soak Single Loop Controls
Distributed Modbus PID Controls
Future Design Controls B Series board level controls, models B41 and B42, are based upon the 1/4 DIN panel mount 4100 and P41 controllers. Typically these products are used as sub-panel mount controllers and accessed by a serial modbus master device; i.e. PLC, HMI display, PC, etc.
FDC B41 PID Steady State PID Board Level Control
The B41 is a steady state board level PID loop control available with an optional Display/Operator Interface Board.
FDC B42 PID Profile Ramp Soak PID Board Level Control
The B42 is a Profile Ramp Soak board level PID loop control. An optional display board is available but intended only for temporary use, typically for configuration and/or troubleshooting.
Applications:
- Oven and Furnaces
- Environmental Chambers
- Kilns: Glass, Wood, Metal, etc.
- Food Processing – Smokehouses
- Sterilizers / Autoclaves
- Hot plates
- Many more applications
FDC B42 Features:
- Universal Process Inputs/18 Bit A-D
- 9 Programs with up to 64 steps/program
- Profile Features; Holdback, Wait For & more
- Event Input configurable for 1 of many functions
- PID Fuzzy Assisted Auto Tune
- 2-Sets of PID Configurations
- Up to 4 Control Outputs
FDC B41 Features:
- Universal Process Inputs/18 Bit A-D
- Setpoint Logic: Static or Ramp Rate
- PID Fuzzy Assisted Auto Tune
- Up to 3-Control Output
FDC P Series – Profile Ramp/Soak Controls
P41 & P91 Ramp/Soak Single Loop Controls
P Series Ramp Soak Profile Single Loop Controls
The FDC-P Series of controllers, the FDC-P41 1/4 DIN and FDC-P91 1/16 DIN, with up to 9 Profiles (up to 64 segments/profile) and up to 5 outputs set new standards for single loop Profile controls. Packed with performance and features meeting simple or complicated OEM applications, the P Series provides an unrivaled value.
Applications:
- Oven and Furnaces
- Environmental Chambers
- Kilns: Glass, Wood, Metal, etc.
- Food Processing – Smokehouses
- Sterilizers / Autoclaves
- Hot plates
- Many more applications
Features:
- Universal Process Input/18 Bit A-D
- 9 Programs with up to 64 steps/program
- Profile Features; Holdback, Wait For & more
- Event Input configurable for 1 of many functions
- SEL configurable prompt sequence
- Simple to Use & Configure
- PC Configurable
- PID Fuzzy Assisted Auto Tuning
- 2-sets of PID configurations
- Up to 4 Control Outputs and optionally
- Retransmission of SP/ PV / PID % out
- Serial Communications (option)
FDC 8 Series DIN Rail Mount
Series 8 DIN Rail Mount Temperature Control – 20 amp relay.
Surface or DIN Rail Mount Temperature Controller
Series 8 is a combination surface or DIN rail mount temperature controller that uses the latest in solid state and modular technology.
Setup is accomplished simply by adjusting the set point dial by hand. An integral 20 amp “SPDT” relay eliminates the need for “additional” relays when controlling hi-current loads.
The Series 8 is available with either on/off or time proportioning control outputs. Shown below are specifications – consult factory for special hysteresis, proportional band, cycle times, input power and output types and ratings.
Applications:
- Oven – Furnaces – Kilns
- Food Service Equipment
- Hot Plates / Melt Pots
- Applications requiring a Simple
non-Indicating Temperature Control
with 20A relay
Features:
- Low Cost Temperature Control Solution
- DIN Rail or Surface Mount
- Simple Reliable Analog Design
- On-Off and Time Proportioning Control Output
- Easy to Use and Install
- Dual F / C Temperature Ranges
- Output: 20 Amp (resistive)
Form C Relay (SPDT)
Analog Controls
Analog Panel Mount DIN Temperature Controls
Future Design Controls Analog Series Controllers provide low cost simple to use on/off or proportional control for 1/16 DIN through 1/4 DIN requirements.
Built in “Laser Trim” ASIC technology offers reliable and repeatable control for industrial applications. A wide selection of control outputs and input ranges make the FDC analog series a perfect choice for low cost applications.
Applications:
- Oven – Furnaces – Kilns
- Food Service Equipment
- Food Sercice Equipment
- Plastics & Rubber Machinery
- Replace Legcay Obsolete Analog DIN controls
Features:
- Low Cost Temperature Control Solution
- Simple Reliable Analog Design
- Analog & Digtal Setpoint
- On-Off and Proportional Control Outputs
Eurotherm Barber Colman 7EM Controller
The 7EM temperature control has a 3 Digit digital display. It has features such as simultaneous heating and cooling control and automatic/manual control options. It is an all-purpose temperature controller. It is a 1/8 DIN panel mount control with with various input/output options, for stable and precise temperature control in any required application.
Performance Features:
* Heater breakdown input
* Two temperature Alarms
* Automatic/manual control option
* Heater breakdown alarm and load current display in engineering units
* Auto-Tuning
* Algorithms of Heat or Heat/Cool control
* Control output disable function
* DIN size: (48 x 96)
**PID with auto-tune, 2 programmable outputs, 100 to 240 Vac . . . . . . . . . . . . . . . . . . .7EM431103000 $ Call for Pricing
**PID with auto-tune, 2 programmable outputs, 24 Vac/Vdc . . . . . . . . . . . . . . . . . . . . . .7EM431105000 $ Call for Pricing
**PID with auto-tune, 2 programmable outputs, alarm, 100 to 240 Vac . . . . . . . . . . . . .7EM431113000 $ Call for Pricing
**PID with auto-tune, 2 programmable outputs, alarm, 24 Vac/Vdc . . . . . . . . . . . . . . . .7EM431115000 $ Call for Pricing
**PID with auto-tune, 2 programmable outputs, alarm, HBD input, 100 to 240 Vac . . .7EM431123000 $ Call for Pricing
Brochure:
***VISIT OUR STORE TO VIEW STOCK*** Contact our sales engineers for Technical Support and Product Selection!! https://phoenixthermalsupply.com/contact-us/
PID Controller Applications:
- Batch processes
- Electroplating
- Environmental chambers
- Foodservice equipment
- Furnace/ovens
- Medical and dental equipment
- Packaging
- Plastics processing
- Pulp and paper
- Semiconductor manufacturing
